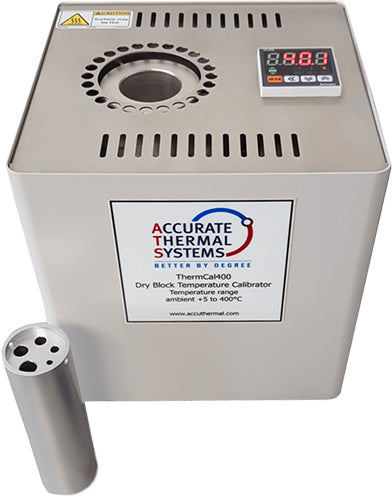

ThermCal400 Dry Block Temperature Calibrator – 120VAC, ATS3010
ThermCal400 Dry Block Temperature Calibrator – 120VAC, ATS3010
The ThermCal400 Dry Block Temperature Calibrator is a compact, accurate, and stable temperature calibration unit for laboratory, production, and field use. Designed for calibrating thermocouples, RTDs, temperature sensors, thermometers, switches, controllers, and related instruments, it delivers reliable performance from ambient +10°C to 455°C.
This 120VAC, 900-watt dry block calibrator offers ±0.4°C accuracy up to 400°C, ±0.05°C stability, and excellent radial uniformity for dependable calibration results. Each unit ships complete with accessories and a 5-point NIST traceable calibration certificate.
Key Features
- Operating range: ambient +10°C to 455°C
- Accuracy: ±0.4°C up to 400°C
- Stability: ±0.05°C
- Radial uniformity: 0.058°C worst case at 400°C
- Compact and portable: 10 lb with insert
- Includes ATS3041 multiwell insert
- Includes 5-point NIST traceable calibration certificate

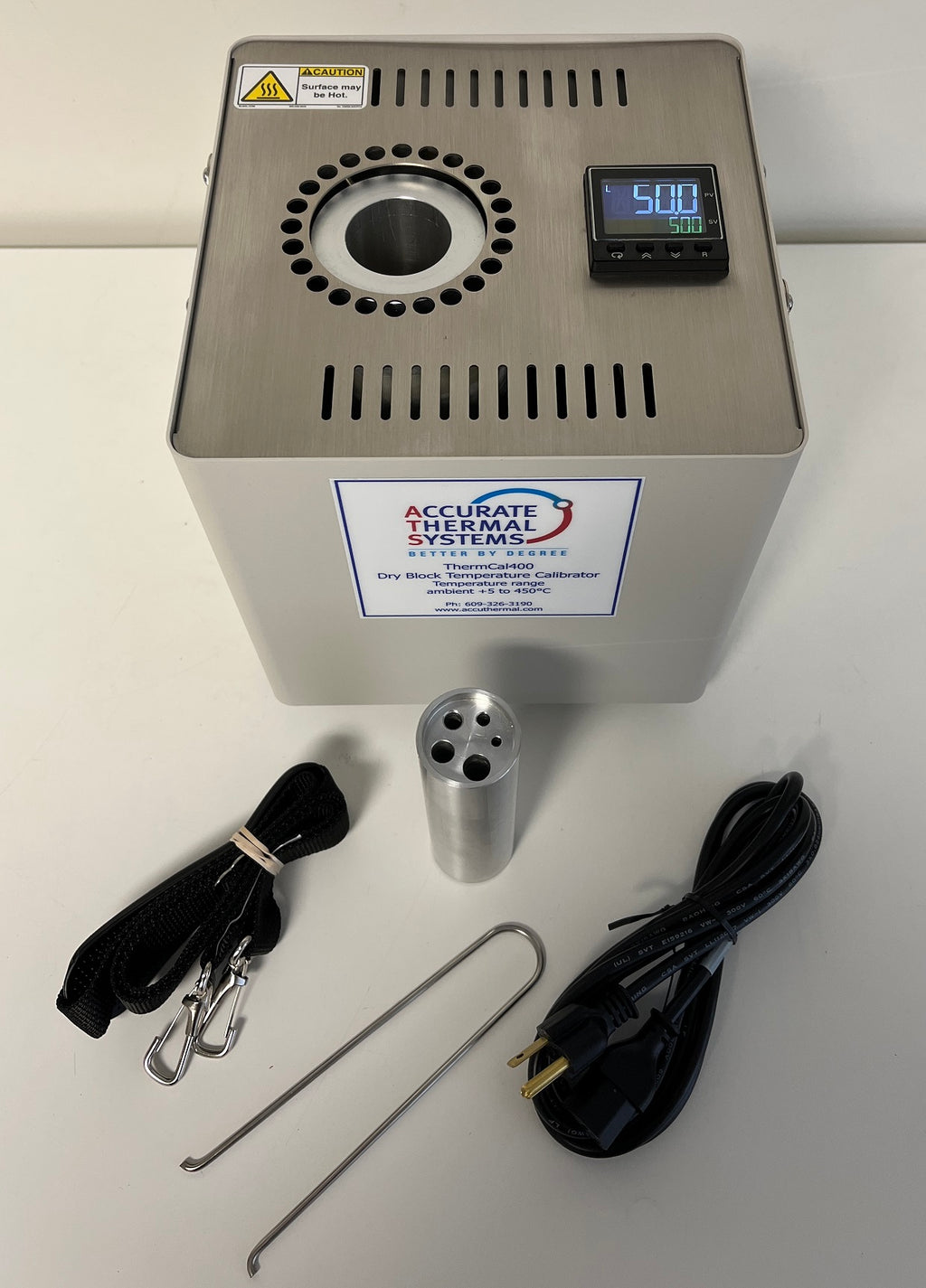

Included
- ATS3041 multiwell insert with 1/8", 3/16", 1/4", 5/16", and 3/8" holes
- Mains power cable
- Insert extractor
- Carrying strap
- 5-point NIST traceable calibration certificate
- Manufactured and supported in New Jersey, USA
- Call 609-326-3190 for technical questions
Specifications
- Model: ThermCal400
- Part Number: ATS3010
- Voltage: 120VAC
- Power: 900 watts
- Frequency: 50/60Hz
- Weight with Insert: 10 lb
- Packaged Weight: 14 lb
- Shipping Box: 12" x 12" x 14"
